NEW QUESTION 1
Which protocol detects path status (up/down), measures loss/latency/jitter, and measures the quality of the IPsec tunnel MTU?

• A. OMP
• B. IP-SLA
• C. BFD
• D. DTLS

Answer: C

NEW QUESTION 2
An engineer is configuring a list that matches all IP prefixes with lengths from /1 to /16 in a centralized control policy. Which list accomplishes this task?

• A. 0.0.0.0/1 le 16
• B. 0.0.0.0/0 ge 1
• C. 0.0.0.0/0 le l6
• D. 0.0.0.0/16 ge 1

Answer: A

NEW QUESTION 3
Which VPN must be present on at least one interface to install Cisco vManage and integrate it with WAN Edge devices in an overlay network site ID:S4307T7E78F29?

• A. VPN 512
• B. any VPN number selected
• C. services VPN range 0-511
• D. VPNO

Answer: D

NEW QUESTION 4
Which two resource data types are used to collect information for monitoring using REST API in Cisco SD-WAN? (Choose two.)

• A. POST
• B. DELETE
• C. scalar
• D. array
• E. PUT

Answer: CD

NEW QUESTION 5
Which attributes are configured to uniquely Identify and represent a TLOC route?

• A. system IP address, link color, and encapsulation
• B. firewall, IPS, and application optimization
• C. site ID, tag, and VPN
• D. origin, originator, and preference

Answer: A

Explanation:
https://www.cisco.com/c/dam/en/us/td/docs/solutions/CVD/SDWAN/CVD-SD-WAN-Design-2018OCT.pdf

NEW QUESTION 6
Which plane builds and maintains the network topology and makes decisions on traffic flows?

• A. orchestration
• B. management
• C. control
• D. data

Answer: C

NEW QUESTION 7

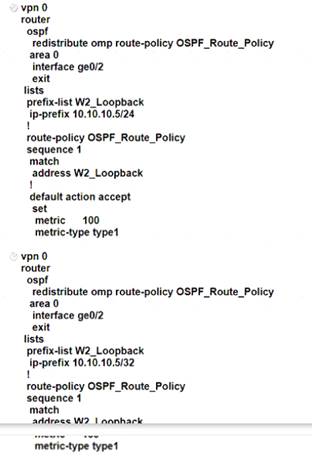

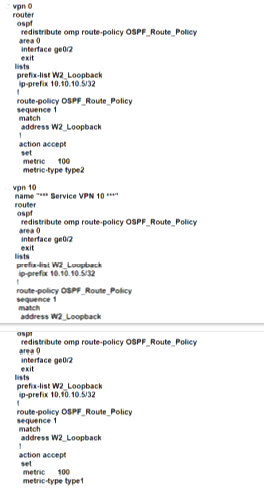

A customer is receiving routes via OMP from vSmart controller for a specific VPN. The customer must provide access to the W2 loopback received via OMP to the OSPF neighbor on the service-side VPN, which configuration fulfils these requirements?

• A. Option A
• B. Option B
• C. Option C
• D. Option D
• E. Option E

Answer: D

Explanation:
Answer must start with VPN 10(service side) & should have metric-type 1 and not with VPN 0 (transport side)

NEW QUESTION 8

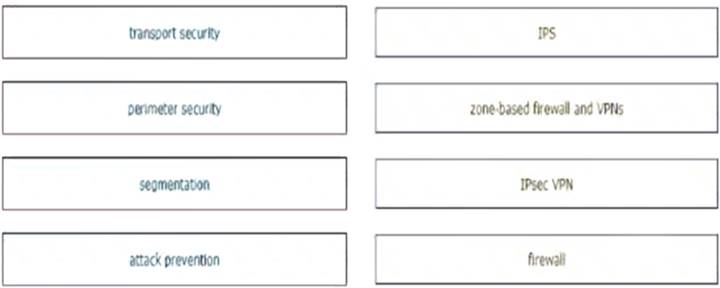

Drag and drop the security terminologies from the left onto the PCI-compliant network features and devices on the right.

• A. Yes
• B. Not Mastered

Answer: A

NEW QUESTION 9
An administrator must configure an ACL for traffic coming in from the service-side VPN on a specific WAN device with circuit ID 391897770. Which policy must be used to configure this ACL?

• A. local data policy
• B. central data policy
• C. app-aware policy
• D. central control policy

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/routers/sdwan/configuration/policies/vedge/policies-book/Policy-basics.h

NEW QUESTION 10
Which two WAN Edge devices should be deployed in a cloud? (Choose two.)

• A. vEdge 5000v
• B. ASR 1000v
• C. CSR 1000v
• D. vEdge 100wm
• E. vEdge cloud

Answer: CE

Explanation:

NEW QUESTION 11
Which two vRoute attributes should be matched or set in vSmart policies and modified by data policies? (Choose two.)

• A. site ID
• B. preference
• C. VPN
• D. TLOC
• E. origin

Answer: BC

NEW QUESTION 12
Where on vManage does an engineer find the details of control node failure?

• A. Alarms
• B. Events
• C. Audit log
• D. Network

Answer: A

Explanation:
https://www.cisco.com/c/en/us/td/docs/routers/sdwan/vManage_How-Tos/vmanage-howto-book/m-troubleshoot

NEW QUESTION 13
Which third-party Enterprise CA server must be used (or a cloud-based vSmart controller?

• A. RootCert
• B. Microsoft
• C. RADIUS
• D. VeriSign

Answer: A

NEW QUESTION 14
How is TLOC defined?

• A. It is represented by a unique identifier to specify a site in as SD-WAN architecture.
• B. It specifies a Cisco SD-WAN overlay in a multitenant vSMART deployment.
• C. It is a unique collection of GRE or iPsec encapsulation, link color, and system IP address.
• D. It is represented by group of QoS policies applied to a WAN Edge router.

Answer: C

NEW QUESTION 15
Which pathway under Monitor > Network > Select Device is used to verify service insertion configuration?

• A. System Status
• B. Troubleshooting
• C. Real Time
• D. Events

Answer: B

NEW QUESTION 16

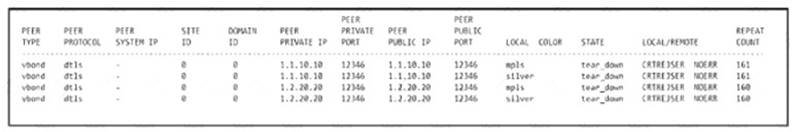

Refer to the exhibit

A WAN Edge device was recently added to vManage but a control connection could not be established Which action resolves this issue?

• A. Rectify the Rod CA certificate mismatch on WAN Edge devices
• B. Install the bootstrap code on WAN Edge and check for CSR
• C. Send the serial number to vBond from the vManage controller.
• D. Resolve the ZTP reachability and rectify smart account credentials issue

Answer: C
